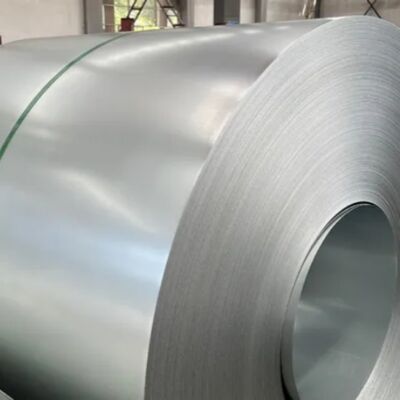

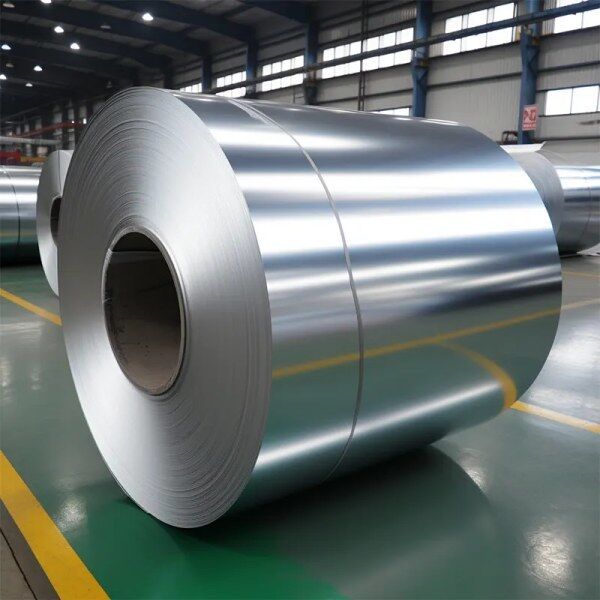

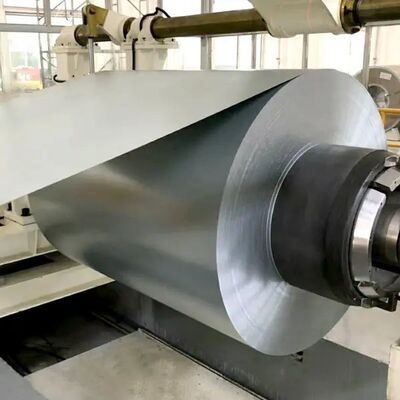

SGCC Galvanized Steel Coil with Z30-Z275 For Integrated Building Systems
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | HUIYI-GI |
| 証明: | JIS, GS, ISO9001 |
| モデル番号: | 亜鉛メッキスチールコイル |
お支払配送条件:
| 最小注文数量: | 25トン |
|---|---|
| 価格: | Negotiated Price, USD/MT |
| パッケージの詳細: | 防水紙で包まれた標準的な輸出パッケージ。その後、高密度PEフィルムで完全に包まれた後。次に、金属製のバンド、Min 4 Bands Horizontal、Min 3 Bandsの垂直に縛り付けられた金 |
| 受渡し時間: | 15-45DAYS |
| 支払条件: | L/C、T/T、D/P |
| 供給の能力: | 月あたり5000トン |
|
詳細情報 |
|||
| 製品名: | 亜鉛メッキスチールコイル | 標準: | ASTM、GB、JIS |
|---|---|---|---|
| 厚さ: | 0.30～1.2mm | 幅: | 600mmから1500mm |
| コーティング: | 30g/㎡-275g/㎡ | 硬度: | ソフトハード(<60)、ミディアムハード(HRB60-85)、フルハード(HRB85-95) |
| コイル重量: | 3-8トン | 表面構造: | 通常スパングル(NS)、最小スパングル(MS)、スパングルフリー(FS) |
| ハイライト: | Z30-Z275 Coating Galvanized Steel Coil,Integrated Building Systems Galvanised Steel Coil,ASTM Standard SGCC Steel Coil |
||
製品の説明
SGCC Galvanized Steel Coil with Z30-Z275 For Integrated Building Systems
Galvanized steel coil is manufactured through a hot-dip process, where steel is immersed in molten zinc to form a metallurgically bonded protective layer that resists rust and corrosion. This coating provides long-lasting durability, making it ideal for construction, infrastructure, automotive components, and electrical enclosures. Its versatility and cost-effectiveness also support widespread use in roofing, siding, and industrial applications.
Product Specifications
| Product Type | Coil / Sheet / Strip |
|---|---|
| Standard | EN10346, JIS G3302, ASTM A653 |
| Thickness | 0.12 - 3.0mm |
| Width | 600mm - 1500mm |
| Zinc Coating | Z30 - Z275 |
| Spangle | Zero / Small / Regular / Big |
| Grade | DX51D, DX52D, G300, G450 |
| Technique | Cold Rolled or Hot Rolled |
Applications
Mainly engineered for integrated building systems.
- HVAC & Ventilation Systems: Used in air grilles, duct silencers, and acoustic louvers, the zinc coating prevents corrosion, ensuring these components maintain their designed performance and airflow efficiency over the long term.
- Roofing & Drainage Solutions: Formed into corrugated roof sheets and drainage channels, they provide durable weather protection that extends building envelope life.
- Structural Support Components: Fabricated as floor plates and load-bearing elements, the material adds strength and corrosion resistance for safer structures.
Packing & Shipping
Each steel coil is protected with multi-layer packaging that includes rust-proof film, reinforced steel bands, and pallets fitted with edge protection. We manage global delivery via both container and bulk carrier shipments, supported by full-process logistics tracking and complete export documentation.
FAQ
Q: What is the corrosion resistance of galvanized steel coil?
A: It offers strong corrosion resistance as the zinc layer can effectively isolate the contact between the steel and the external environment, and extend the service life of the steel, especially in humid environments.
Q: What details are needed for an inquiry?
A: Please share the grade, width, thickness, zinc coating, and required tonnage so we can prepare an accurate quote.
Q: Do you provide samples?
A: Yes, free samples are available worldwide; customers only cover the shipping fee.
