詳細情報 |
|||
| 製品名: | Prepainted Galvalumeの鋼鉄 | 材料: | ガルバリュームスチール |
|---|---|---|---|
| サイズ: | （0.3-1.2）mm×（600-1250）mm | 色: | RAL色 |
| 抗張力: | 270-550 MPA | 降伏強度: | 245-495 MPA |
| コーティング構造: | プライマー+PVDFトップコート | 保証: | 20年間の色保持 |
製品の説明

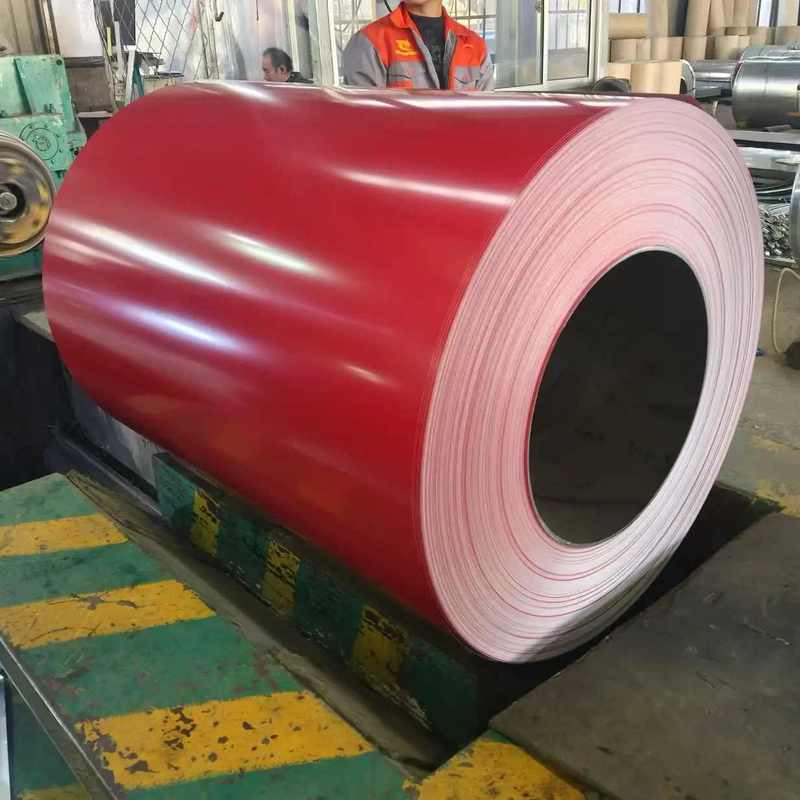

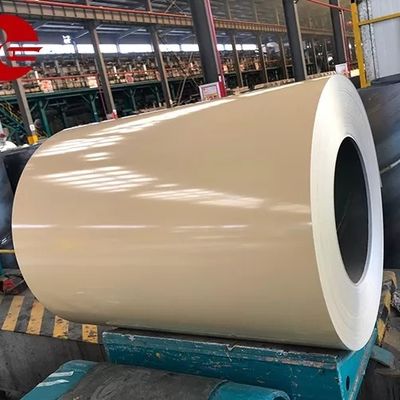

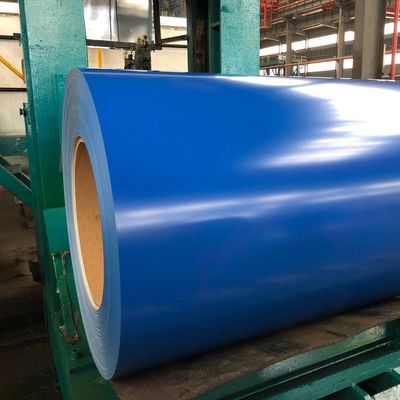

Our PVDF Coating Weatherable Prepainted Galvalume Steel Coil is engineered for superior architectural performance in demanding environments. This product combines the inherent corrosion resistance of a 55% aluminum-zinc alloy substrate (AZ100-AZ150) with a top-tier Polyvinylidene Fluoride (PVDF) resin coating. The exceptional strength of the fluorine-carbon bond in PVDF provides outstanding resistance to solar radiation, chemicals, and pollution, effectively resisting coating degradation caused by solar oxidation. While PVDF coatings may come at a higher cost compared to systems like polyester (PE) or silicone modified polyester (SMP), their near-maintenance-free characteristics and long service life make them the preferred choice for landmark buildings in highly corrosive or high-salt areas. This coil is an ideal, cost-effective solution over its lifespan for iconic structures like international airports, convention centers, and skyscrapers.
| Parameter | Specification |
|---|---|
| Base Material | DX51D+AZ (ASTM A792) |
| Thickness | 0.3mm - 1.2mm (±0.03mm) |
| Width | 600mm - 1,250mm |
| Coating Weight | AZ100-AZ150 (100-150g/m²) |
| Paint System | PVDF (20-30μm) |
| Antibacterial Efficiency | ≥99% (vs. E. coli & S. aureus) |
| Surface Finish | Smooth/Matte, various embossed patterns available |
| Tensile Strength | 270-500 MPa |
| Salt Spray Resistance | 1,000hrs (ASTM B117) |
| Standards | ASTM A792, ISO 9001 |
- Architectural Cladding: Curtain walls, facades, and wall panels for commercial and public buildings.
- Roofing Systems: Long-lasting roofs for industrial plants, airports, and sports stadiums.
- Architectural Elements: Soffits, rain gutters, downpipes, and decorative panels.
- Colors: Full range of RAL colors, including custom matching.
- Surface Finish: Smooth, Matte, Woodgrain, Stucco, and other embossed patterns.
- Dimensions: Customized shearing to your required length and width.
- MOQ: Competitive Minimum Order Quantity, with sample services available.
- Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
- Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
