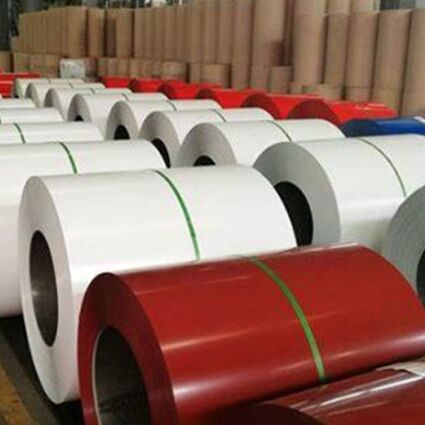

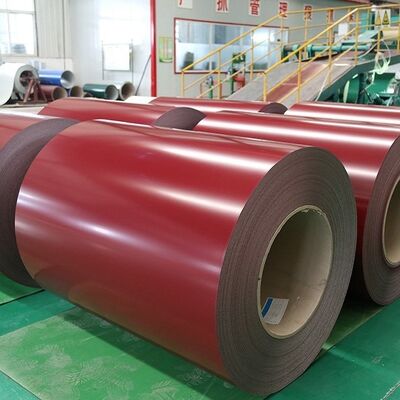

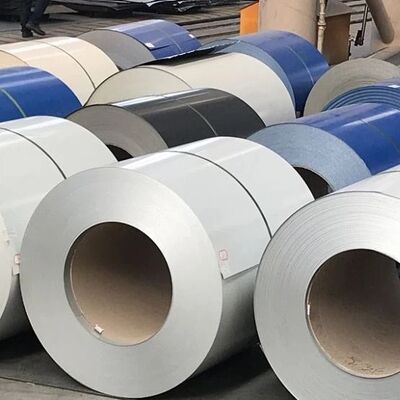

S550GD+AZ High Strength PPGL Galvalume Steel Coil For Solar Mounting Structures
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Huiyi-PPGL |
| 証明: | EN 10346, ASTM A792, JIS G3322, ISO 9001 |
| モデル番号: | S550GD+AZ |
| ドキュメント: | HUIYI CATALOGUE.pdf |
お支払配送条件:
| 最小注文数量: | 25トン |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 防水プラスチックフィルム、防水紙などの3レイヤーを搭載した梱包 - プラスチックフィルムメタルラップ。 |
| 受渡し時間: | 15～30日 |
| 支払条件: | L/C、D/P、T/T |
| 供給の能力: | 5000mt/月 |
|
詳細情報 |
|||
| 製品名: | 前塗装されたガルバルーム鋼コイル | 製品タイプ: | コイル/シート/ストリップ |
|---|---|---|---|
| コーティング重量: | 30-180G/㎡ | コイル重量: | 3 - 8 トン |
| 厚さ: | 0.12～3.5mm | 降伏強さ: | ≥ 550 MPa |
| 抗張力: | 560～750MPa | 主な機能: | 標準的な亜鉛メッキ鋼板と比較して 2 ～ 4 倍の耐食性 |
製品の説明
HDP Coated High Durability PPGL Galvalume Steel Coil For Agricultural Barns & Sheds
Our S550GD+AZ High Strength PPGL Galvalume Steel Coil is engineered for solar mounting structures requiring high load capacity and long-term durability. With a minimum yield strength of 550 MPa (EN 10346) and a 55% aluminum-zinc coating, it delivers 2–4 times greater corrosion resistance than standard galvanized steel—ensuring 20+ years of maintenance-free service for rails, torque tubes, and support frames.
Product Specifications
| Base Material | S550GD+AZ |
|---|---|
| Zinc Coating |
AZ30 - AZ275 |
| Thickness | 0.12 - 3.5mm |
| Width | 600mm - 1500mm |
| Topcoat Type | PVDF / HDP / SMP available |
| Color Options | All RAL colors / Custom colors available |
| Surface Treatment | Chromated Passivation / Oiled / Anti‑Fingerprint |
| Key Performance | 20+ Years Maintenance-Free Service Life |
Applications
● Solar Mounting Rails & Purlins: The primary load-bearing profiles directly supporting solar panels—benefiting from the 550 MPa yield strength that enables lighter, taller, and more efficient structures while reducing steel consumption.
● Ground‑Mount Support Structures: Legs, piles, torque tubes, and frames for utility‑scale solar farms requiring exceptional structural integrity and longevity.
● Roof‑Integrated Mounting (BIPV): Frames for commercial and industrial rooftop installations where both strength and corrosion resistance are critical.
● Carport & Canopy Framing: Durable structural elements for integrated solar carports, charging stations, and shaded parking structures.
Packaging and Shipping
Triple-Shield Packaging
VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics
FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance
Pre-shipment inspection and moisture indicators for transit protection.
FAQ
Do you provide samples?
Yes, for regular sizes sample is free, buyer need to pay freight cost.
How can I get a quotation?
You can leave us message, and we will reply in time. And you can also find our contact details on the Contact page.
How long is the delivery time?
It depends on the order quantity, normally the delivery time takes around 15-30 working days. Please kindly contact us before ordering.
