G550 Pre-painted Galvalume Steel Coil AZ30-AZ275 Coating For Construction
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | HUIYI-PPGL |
| 証明: | SGS, BV, ISO9001 |
| モデル番号: | CGLCC |
| ドキュメント: | 15years' Warranty Letter (M...P).pdf |
お支払配送条件:
| 最小注文数量: | 各厚さ25トン |
|---|---|
| 価格: | negotiated |
| パッケージの詳細: | 標準的なエクスポートパッケージ。防水紙で描画された。その後、高密度PEフィルム。 |
| 受渡し時間: | 20-35DAYS |
| 支払条件: | L/C、T/T、D/P |
| 供給の能力: | 年間50000トン |
|
詳細情報 |
|||
| 製品名: | 準備されたガルバリュームスチールコイル | 製品タイプ: | コイル/シート/ストリップ/コルゲート |
|---|---|---|---|
| 亜鉛メッキ: | AZ30-AZ275 | 厚さ: | 0.12-2.0mm |
| コイルID: | 508/610mm | 塗料の厚さ: | 上：10-25μmback：5-8μm |
| 応用: | 建設業界、屋根 | 支払い期間: | T/T、L/C、D/P |
| 基材: | Galvalumeの鋼板 | コイル重量: | 3～8トン |
製品の説明

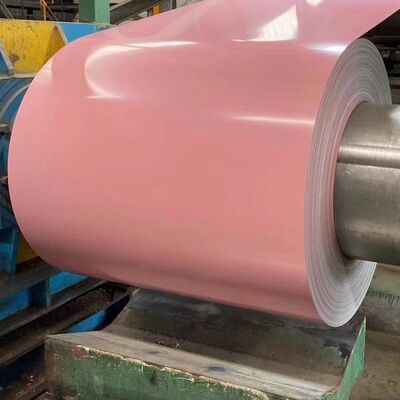

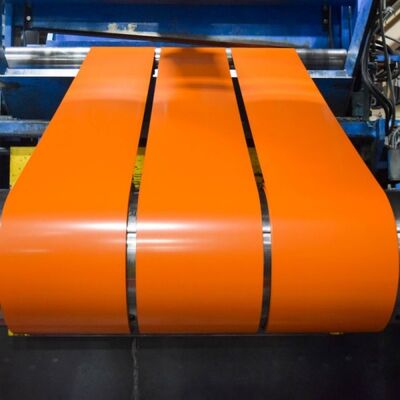

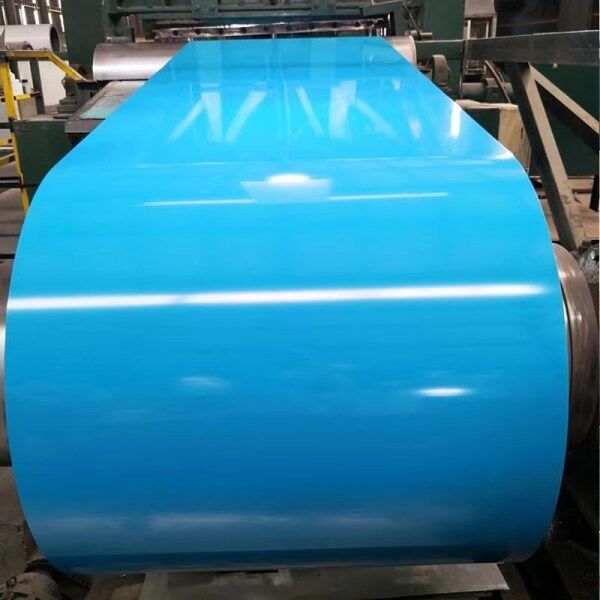

G550 Pre-painted Galvalume Steel Coil AZ30-AZ275 Coating For Construction
Pre-Painted Galvalume Steel Coil (PPGL) starts with a base steel sheet coated in aluminum-zinc alloy, then finished with a high-quality paint layer. This process creates a product that resists corrosion while providing an attractive, lasting appearance. Common applications include building panels, roofing, and home appliance components.
Technical Specifications
| Standard | JIS G 3322, EN 10169, ASTM A755 |
|---|---|
| Grade | CGLCC/CGLCH,DX51D/DX52D |
| Paint | PE / PVDF / PU / SMP / HDP |
| Zinc Coating | 30-275g/m2 |
| Thickness | 0.12mm - 2mm |
| Width | 914mm - 1219mm |
| Coil ID | 508/610mm |
| Processing Service | Construction materials, Roll forming, Cutting, Bending, Perforating, Welding |
Key Applications
- Construction Industry
Used for roofing, exterior and interior wall cladding, balcony panels, suspended ceilings, partitions, window frames, and door panels. - Solar Energy
Used for solar panel mounting brackets, where high weather resistance and long-term outdoor durability are required. - Home Appliance
Mainly applied in housings of refrigerators, washing machines, and air conditioners, where appearance and rust resistance are essential. - Agricultural Sector
Adopted for livestock barn cladding, poultry house roofing, grain storage silos, and greenhouse framing structures where corrosion resistance and durability are critical.
Packing and Shipping
Each PPGL coil is wrapped in VCI paper, kraft paper, and PE film, with PP edge guards and steel bands. Export orders use wooden pallets or crates with clear labeling. Desiccant bags available for humid regions. This packaging ensures coils arrive production-ready.
FAQ
Q: How can I get a quote?
Just let us know your product specifications, and we'll send you a detailed quote asap. You're also welcome to contact us via our Contact page.
Q: Can you make products based on my sample?
Absolutely. We offer custom production according to your physical samples or technical drawings.
Q: What payment methods do you accept?
We offer flexible payment options, including:
1) 30% T/T deposit, with the balance payable against scan copy of BL
2) 100% irrevocable L/C at sight
Other arrangements can be discussed to suit your needs.
1) 30% T/T deposit, with the balance payable against scan copy of BL
2) 100% irrevocable L/C at sight
Other arrangements can be discussed to suit your needs.
