詳細情報 |
|||
| 製品名: | Prepainted Galvalumeの鋼鉄 | 材料: | ガルバリュームスチール |
|---|---|---|---|
| サイズ: | （0.3-1.2）mm×（600-1250）mm | 色: | RAL色 |
| 抗張力: | 270-550 MPA | 降伏強度: | 245-495 MPA |
| 抗菌剤: | 銀イオン技術 | 塩スプレー抵抗: | 1,000時間（ASTM B117） |
製品の説明

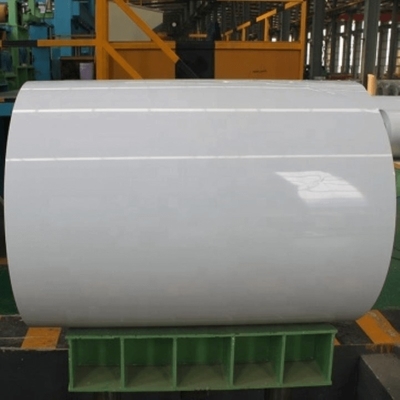

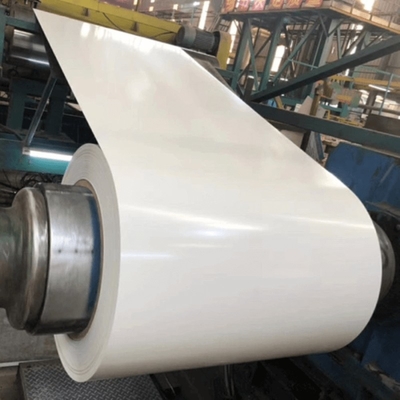

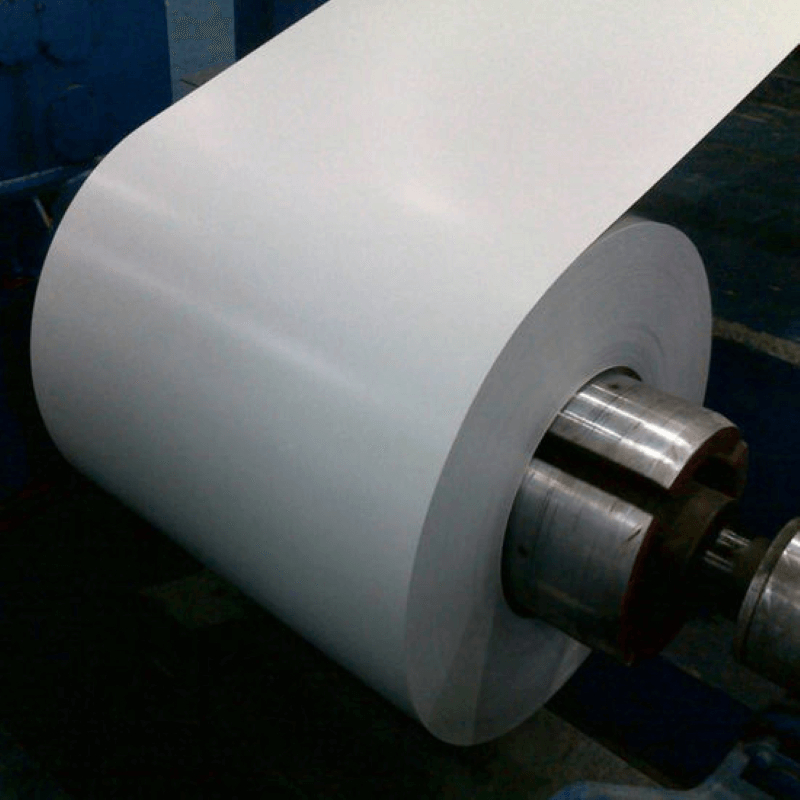

Antibacterial Coating Hygienic Prepainted Galvalume Steel Coil For Medical
Our Antibacterial Coating Hygienic Prepainted Galvalume Steel Coil is engineered for medical and high-hygiene environments, combining the superior corrosion resistance of a 55% Al-Zn alloy substrate (AZ100-AZ150) with a nano-level antibacterial coating. This coil features a durable paint system (PVDF/HDP) infused with long-acting antibacterial agents (e.g., silver or copper ions), which effectively inhibit the growth of bacteria (e.g., E. coli, S. aureus), fungi, and other pathogens. Ideal for medical facilities, laboratories, and food processing plants, it reduces cross-contamination risks while maintaining excellent formability and aesthetic appeal. Certified to ASTM A792 and ISO 9001, it offers 3-5 times longer service life than standard coated coils in corrosive environments.
| Parameter | Specification |
|---|---|
| Base Material | DX51D+AZ (ASTM A792/A792M) |
| Thickness | 0.3mm - 1.2mm (±0.03mm) |
| Width | 600mm - 1,250mm |
| Coating Weight | AZ100-AZ150 (100-150g/m²) |
| Paint System | PVDF/HDP (20-30μm) with Antibacterial Agents |
| Antibacterial Efficiency | ≥99% (vs. E. coli & S. aureus) |
| Surface Finish | Smooth/Matte (Hygienic) |
| Tensile Strength | 270-500 MPa |
| Salt Spray Resistance | 1,000hrs (ASTM B117) |
| Standards | ISO 22196 (Antibacterial Activity) |
- Medical Facilities: Wall cladding, ceiling panels, and partitions in hospitals, clinics, and cleanrooms.
- Laboratory Equipment: Cabinets, workbenches, and HVAC ducts requiring antimicrobial protection.
- Food Processing Zones: Hygienic wall systems and equipment surfaces in kitchens and food plants.
- Pharmaceutical Infrastructure: Storage units and modular structures for drug manufacturing.
- Antibacterial Agents: Silver ions (standard), copper-ion blends, or custom formulations.
- Colors: RAL/Pantone shades (e.g., white, light green) for medical aesthetics.
- Dimensions: Tailored thickness, width, and length cuts.
- Certifications: Custom testing for ISO 22196 or JIS Z 2801 standards.
- MOQ: 5 tons (custom orders), 10 tons (standard).
- Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
- Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Q: When will you arrange production for prepainted steel coil?
In 7 workdays when we receive your advance payment.
Q:What s the payment term for color coated steel coil?
A:30-50% TT in advance(based on your qty ), 70% balance against copy B/L in 7 workdays.
Q:When will you send BL copy?
A:In 3-5 workdays after shipment date.
Q:When will you send original Documents?
A:In 3-5 workdays when we get the balance.
Q: What is the lead time for samples?
A: Samples are available in 7-10 days after detailed requirements confirmation.
A: Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
