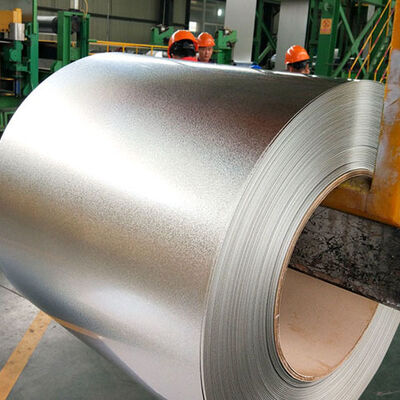

AZ180 Heavy Coated Galvalume Steel Coil For Coastal Industrial Roofing
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Huiyi-GL |
| 証明: | ASTM A792M, EN 10346, ISO 9001 |
| モデル番号: | DX51D+AZ |
| ドキュメント: | HUIYI CATALOGUE.pdf |
お支払配送条件:
| 最小注文数量: | 25トン |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 防水プラスチックフィルム、防水紙などの3レイヤーを搭載した梱包 - プラスチックフィルムメタルラップ。 |
| 受渡し時間: | 15～30日 |
| 支払条件: | L/C、D/P、T/T |
| 供給の能力: | 5000mt/月 |
|
詳細情報 |
|||
| 製品名: | ガルバリウム鋼板コイル | 製品タイプ: | コイル/シート/ストリップ |
|---|---|---|---|
| コーティング重量: | 30-180G/㎡ | コイル重量: | 3 - 8 トン |
| 厚さ: | 0.12～3.0mm | 幅: | 600mmから1500mm |
| 主要特点1: | 亜鉛メッキ鋼板よりも 4 ～ 6 倍長い耐用年数 | 主要特点2: | 50 年間の基板保証が利用可能 |
製品の説明
Our AZ180 Heavy Coated Galvalume Steel Coil is engineered for coastal and heavy industrial roofing applications where salt spray and pollutants cause relentless corrosion. Featuring a 55% aluminum-zinc alloy coating (AZ180, 180 g/m²), this product combines aluminum's barrier protection with zinc's sacrificial defense to deliver 4-6 times longer service life than standard galvanized steel, with documented field warranties up to 50 years. It withstands sustained temperatures up to 315°C (600°F). For coastal industrial roofing requiring maximum corrosion protection and minimal lifecycle cost, AZ180 is the ultimate long-term solution.
| Coating Composition | 55% Aluminum, 43.4% Zinc, 1.6% Silicon |
|---|---|
| Zinc Coating | AZ30 - AZ180 |
| Thickness | 0.12 - 3.0mm |
| Width | 600mm - 1500mm |
| Surface Treatment | Chromated Passivation, Oiled, Anti-Fingerprint |
| Spangle Finish | Regular / Minimized / Zero spangle |
| Heat Resistance | Up to 315°C continuous |
| Key Performance | 50-year substrate warranty available |
- Coastal Industrial Roofing & Cladding: Primary material for factories, processing plants, warehouses, and logistics centers located within coastal zones where salt spray and high humidity accelerate standard material degradation.
- Severe Industrial Environments: Chemical processing plants, pulp and paper mills, fertilizer plants, refineries, and other facilities exposed to aggressive industrial pollutants and chemical atmospheres.
- Marine & Port Facilities: Buildings at seaports, shipyards, dockside warehouses, and offshore platform support structures where resistance to seawater spray is critical.
- Power Generation & Infrastructure: Power plants, substation buildings, and critical infrastructure requiring maximum corrosion protection with minimal maintenance access.
Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance: Pre-shipment inspection and moisture indicators for transit protection.
