詳細情報 |
|||
| 製品名: | 建築材料のalu泡ホイル | 使用法: | 造る鉄骨構造材料 |
|---|---|---|---|
| 材料: | アルミニウム、PEの織り方+aluminumホイル | ロール サイズ: | 1.2*40m/roll （カスタマイズされたサイズは利用できる） |
| 泡厚さ: | 2.5-8 mm | 幅: | カスタマイズされる50mm-1500mm |
| 適用: | 構造 | 機能: | 、耐火性耐熱性、防水 |
| ハイライト: | 鉄骨構造のアルミ ホイルの泡、鉄骨構造の気泡緩衝材アルミニウム、PEの織り方の気泡緩衝材アルミニウム,Steel Structure bubble wrap aluminium,PE weave bubble wrap aluminium |
||
製品の説明

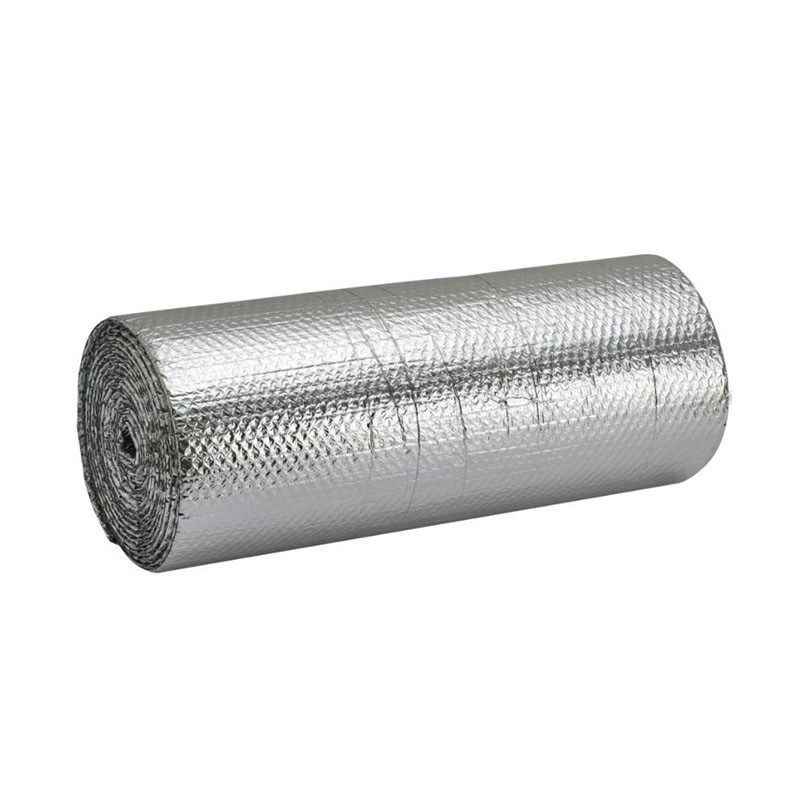

Building Steel Structure Material ALU-BUBBLE FOIL
Alu-bubble foil introduction:
Alu-bubble foil a new environmentally friendly heat insulation material, which can add a layer of PE woven cloth on the basis of the original aluminum foil and polyethyene, which greatly enhances tensile strength and tering-resistance strength without changing its original characterstics.
Alu-bubble foil specifications :
| Product name | Building steel structure material alu-bubble foil |
| Structure | Alu Foil/Bubble/Alu foil |
| Bubble size | Ø 10mm, H 3mm |
| Standard roll size | 1.2*40m (Can be customized) |
| Weight | 160-360 g/m2 |
| MOQ | 1 container |
| PROPERTIES | DATE | Unit |
| Reflectivity | 97 | % |
| Temperature Range | -40~+100 | ℃ |
| Emissivity | 0.03 | COEF |
| Thermal Conductivity | 0.032 | W/m0 |
| Water Vapour Transmission | 0.012 | G/M2KPA |
| Tensile Strength(MD) | 13.43 | MPA |
| Tensile Strength(TD) | 14.58 | MPA |

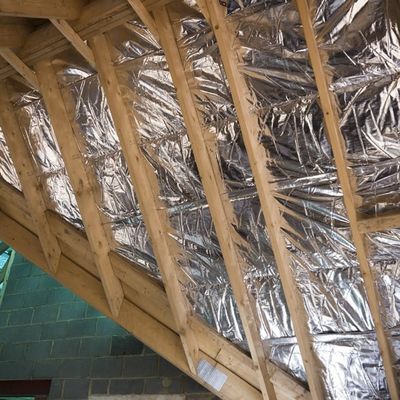

Here are the loading and application picutres of alu-bubble foil:
Alu-bubble foil application :
1. Roof Underlayments
2. Homes
3. Metal & Steel Buildings
4. Attics
5. Ceilings
6. Floors
7. Basement Walls
8. Post frame buildings
9. Temperature sensitive storage areas
10. Garage Doors
11. Pole barns
12. Poultry barns
13. Crawl Spaces
14. Animal kennels
FAQ:
1.If you want to get a quotation ,what information need be provided to you?
A: Size(Width*Length*Thickness),color and the quantity demand and any other needs.
2. When can I get price after I send an enquiry?
A: We can guarantee that you can have the price as soon as possible
